2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

  • 1
  • 2

Brand Name : External Array

Model Number : Rational Vue

Place of Origin : USA

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 per month

Delivery Time : 5 work days

Packaging Details : Paper box

Price : Discussible

Edge Function : Included

Compatible measuring type : Vision measuring

Contour scanning : Automatic

Filter : Color filter and grey filter

Analysis function : data analysis, SPC, CAD reverse, Formerror analyzing

Contact Now

3D Measurement Software 2D VMM Measuring Software Edge Function Filter Function

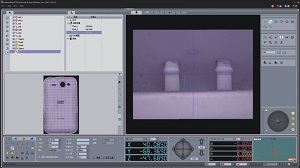

The Rational Vue 2D Measurement Software series offers universal and powerful 2D image measuring function to users. It offers basic elements measuring such as points, lines, angles, circles, distance, etc. The Rationvue series provides outstanding motion control to the automatic machine. Together with the strong edge detecting function and easy pprogramming, ensures very high measuring efficiency in mass measuring. It is the best vision measuring software in cell phones, plastic products, electronics, etc which need mass production and quality control.

Features

The thoughtful machine calibration improves accuracy greatly.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

RationalVue offers CCD length-width scale calibration, CCD auto-rotate/horizontal calibration, CCD lens coaxial calibration and CCD pixel calibration, With multiple calibration methods, RationalVue uttermost improves measure accuracy of machine, Moreover, RationalVue developed lens distortion calibration which enhances the precise of large wide-angle lens dramatically. We pay highly attention to precise improvement, even for 0.1um.

Burrs filtering

RationalVue can filter burrs of measure product that removes those convex or concave places to measure completely with a great accuracy.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

The edge function of RationalVue can capture those fuzzy and rough edges easily. It means truly realize the automation measurement.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Color filter

Set required measuring color; remove the effect of the other colors

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Grey level filtering, remove white highlight edge effect. Filter the unmeasured edge to ensure weak

edge will not be affected by clearer edge

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Special Edge processing

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Remove edge impurities Remove the effect of black Remove the effect of white

shadow edge highlight edge

RationalVue has many measuring settings. They all can be set according to real situation to satisfy different measurement to complete CNC inspection.

Complete feature measurement

RationalVue provides measure point, line, circle, arc, ellipse, slot, rectangle and curve scan, and girth and flaw area. And make form comparison with CAD nominal curve.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Powerful Edge function

RationalVue adopts advanced weak-edge algorithm. Measurement of weak-edge line can be finished without any special settings.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Optical focusing

With world advanced focus algorithm under independently development, RationalVue can quick and exact complete part focus with 2-3 seconds. The repeat focus can reach to 0.003 mm which can be used for the tolerance measurement, such as height, flatness etc.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Curve scan & FormError Analysis

RationalVue can track product edge automatically to scan edge curve profile of any product. And it also can make profile comparison with imported CAD nominal curve, calculate curve profile, and output curve FormError graphical report.

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Grid board measurement

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

RationalVue has a professional measuring tool special for grid board that can achieve measuring of grid line easily. It is suitable for solar energy, TV industry etc.

Multi-layer segment measurement

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

RationalVue can realize multi-layer line by one-button, and it allows user to select any line of them.

Advanced sub-pixel algorithm

RationalVue adopts international advanced sub-pixel algorithm to make measurement accuracy increasing dramatically. By comparison test, it shows that select video measuring machine with RationalVue will increase precise and repeatability greatly.

Path optimization

Path optimization will make measure path to shortest. It can enhance measurement efficiency as much as possible to reduce cost for customers.

Remove edge impurities

Company Information

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

Our Client&Agent

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
FAQ
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter Q1: Are you a factory or trading company ?
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter A1: We are a factory and giving you the quickest reply in 24 hours.
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter Q2: What's your company mainly in?
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter Q3: How to Choose the Appropriate Specification?
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter Q4: Do you accept customized service?
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter Q5: What is your warranty period?
2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
