Motorized Zoom Industrial Lens Servo Motor Controller Auto Focus
Motorized zooming and controller
To satisfy the requirement of fast and precise measuring and rapid
locating during the measuring processing, based on years of optical
design experience and automation control technology, we have
developed the UNIL-AZ series optical motorized zoom lens and the
High zooming speed and high repeatability.
Using high performance DC servo, full close-loop control.
Supporting Win XP / Win 7 operation system.
Motorized zooming and focusing.
The mechanical parts remain the stability even in the environment

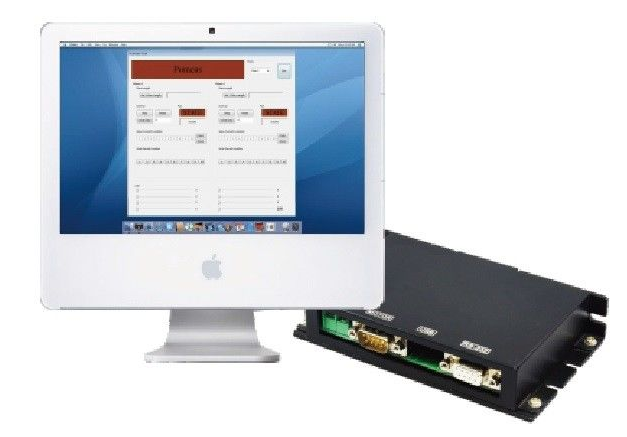

Motorized lens controller
All the motorized zoom lens supported.
Full integration motion control.
The motion control system is able to achieve single axis or double
axis control through RS232 or USB.
Offering software original codes for OEM platform.
Advantage of motorized zoom lens
Electronic fixing magnification function:
Combining the sensor technology and the microscope system optic
technology, the auto zoom series products is able to identify the
magnification information of the lens in realtime through the host
computer, users do not need to calibrate when changing the
magnification. Users can achieve fluent measuring because of
avoiding the magnification selecting error.
Co-axial EPI illumination
Using infinity parallel lighting system, illumination without
The even illuminating design offers amplification effect with
The co-axial illumination offers clear observing image when using
high resolution cameras.
High speed zooming and focusing, high repeatability, using hih
performance DC servo motor, full close-loop control.
The motion controller achieves single axis or double axis control
through 9 PINs RS232 interface.
Keep stable in vibrating environment.
High accuracy zooming, high repeatability.
15 section mechanical locating.
Using high rigidity alloy material, ling life cycle, stable
Fine adjusting device
Fine combination, able to adjust the focusing within 0mm-3mm (12mm)
Combination of outstanding curve and optical design.
Zero gap precise coordination, no effect to the image in any
